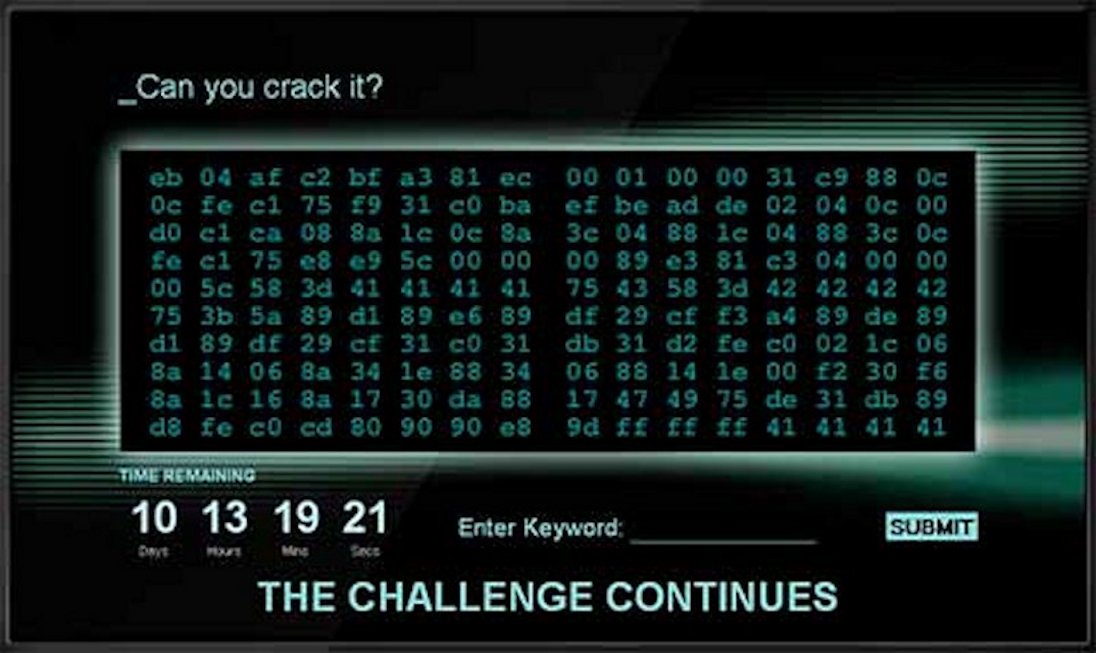

Can you crack it by the Lazy Hacker
Like many ethical hackers,there is a small part of me that dreams of working as a professional computer hacker for the government, so when I saw the GCHQ challenge at http://www.canyoucrackit.co.uk/ I couldn’t resist…
Challenge #1
So the first challenge was a mess for me. I broke out my PHP development tools and got to work. I typed out all the numbers in a sequence of arrays and started running cryptography tests on it. The frequency analysis was off the charts… panic time! This wasn’t the simple challenges you find in a newspaper. From my years of experience, I thought “I needed to figure out what encryption algorithm they are using“. I did some google searches trying to find an algorithm for calculating the randomness of the sequences and a list of randomnesses of known algorithms. That didn’t go well; I couldn’t find anything of value. The page does say enter the keyword, so I figured it must be a cypher based on a repeating keyword since there wasn’t enough data for this to be a real encryption challenge.
Modern encryption techniques like RSA or DES would need a much larger data set to have any possibility of cracking it. Assuming this was a password, then I needed to figure out how long the password was. I ran some more frequency analysis tests and came up empty. The keyword length was undetectable. I did notice that the HEX patterns looked a bit like it could be binary executable code, but I I don’t have any assembly language tools on my computer to test it, and I’m not going to just execute code posted on a web site without seeing the source first so I didn’t want to risk it.
So whats left… Social engineering!
I went to work searching google for forums on the subject. Turned out that it was binary assembly language code, oh well, I probably could have cracked this first challenge but I was just too lazy. So they posted the link to the next challenge so I went to work on it.
Challenge #2
Project two was a virtual machine which contained a pre-loaded application. The only thing that the machine was missing was a bytecode interpreter. Ok, so this is something I can handle. I went to work. Here was my results…
<html>
<head></head>
<script src="15b436de1f9107f3778aad525e5d0b20.js"></script>
<body>
<script>
function bin2String(array) {
var result = "";
for (var i = 0; i < array.length; i++) {
result += String.fromCharCode(parseInt(array[i], 2));
}
return result;
}
function getMem() {
//var val = bin2String(VM.mem);
//document.getElementById('tgt').value = val;
for(idx=448;idx<VM.mem.length;idx++) {
var n = document.createElement('p');
n.appendChild(document.createTextNode(String.fromCharCode(VM.mem[idx])));
document.getElementById('tgt2').appendChild(n);
}
}
</script>
<textarea cols="80" rows="20" id="tgt">
</textarea>
<a href="#" onclick="getMem()">XXX</a>
<div id="tgt2"></div>
</body>
</html>
Javascript:
//--------------------------------------------------------------------------------------------------
//
// stage 2 of 3
//
// challenge:
// reveal the solution within VM.mem
//
// disclaimer:
// tested in ie 9, firefox 6, chrome 14 and v8 shell (http://code.google.com/apis/v8/build.html),
// other javascript implementations may or may not work.
//
//--------------------------------------------------------------------------------------------------
var VM = {
cpu: {
ip: 0x00,
r0: 0x00,
r1: 0x00,
r2: 0x00,
r3: 0x00,
cs: 0x00,
ds: 0x10,
fl: 0x00,
firmware: [0xd2ab1f05, 0xda13f110]
},
mem: [
/* 0000 */
0x31, 0x04, // 00110001 movr r1, 4
0x33, 0xaa, // 00110011 movr r3, 170
0x40, 0x02, // 01000000 movm r0, [ds:r2]
0x80, 0x03, // 10000000 xor r0, r3
0x52, 0x00, // 01010010 movm [ds:r2], r0
0x72, 0x01, // 01110010 add r2, 1
0x73, 0x01, // 01110010 add r3, 1
0xb2, 0x50, // 10110010 cmp r2 ,#80
/* 0010 */
0x30, 0x14, // 00110000 movr r0, 20
0xc0, // 11000000 jmpe r0
0x01, // 00000001 jmp r1
0x80, 0x00, // 10000000 xor r0, r0
0x10, 0x10, // 00010000 jmp 16:r0
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 0020 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 0030 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 0040 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 0050 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 0060 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 0070 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 0080 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 0090 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 00A0 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 00B0 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 00C0 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 00D0 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 00E0 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 00F0 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 0100 */ 0x98, 0xab, // xor r1, 171
0xd9, // 11011001 JMPE r2:r1
0xa1,
0x9f, 0xa7, 0x83, 0x83, 0xf2, 0xb1, 0x34, 0xb6, 0xe4, 0xb7, 0xca, 0xb8,
0xc9, 0xb8, 0x0e, 0xbd, 0x7d, 0x0f, 0xc0, 0xf1, 0xd9, 0x03, 0xc5, 0x3a, 0xc6, 0xc7, 0xc8, 0xc9,
0xca, 0xcb, 0xcc, 0xcd, 0xce, 0xcf, 0xd0, 0xd1, 0xd2, 0xd3, 0xd4, 0xd5, 0xd6, 0xd7, 0xd8, 0xd9,
0xda, 0xdb, 0xa9, 0xcd, 0xdf, 0xdf, 0xe0, 0xe1, 0xe2, 0xe3, 0xe4, 0xe5, 0xe6, 0xe7, 0xe8, 0xe9,
0x26, 0xeb, 0xec, 0xed, 0xee, 0xef, 0xf0, 0xf1, 0xf2, 0xf3, 0xf4, 0xf5, 0xf6, 0xf7, 0xf8, 0xf9,
0x7d, 0x1f, 0x15, 0x60, 0x4d, 0x4d, 0x52, 0x7d, 0x0e, 0x27, 0x6d, 0x10, 0x6d, 0x5a, 0x06, 0x56,
0x47, 0x14, 0x42, 0x0e, 0xb6, 0xb2, 0xb2, 0xe6, 0xeb, 0xb4, 0x83, 0x8e, 0xd7, 0xe5, 0xd4, 0xd9,
0xc3, 0xf0, 0x80, 0x95, 0xf1, 0x82, 0x82, 0x9a, 0xbd, 0x95, 0xa4, 0x8d, 0x9a, 0x2b, 0x30, 0x69,
0x4a, 0x69, 0x65, 0x55, 0x1c, 0x7b, 0x69, 0x1c, 0x6e, 0x04, 0x74, 0x35, 0x21, 0x26, 0x2f, 0x60,
0x03, 0x4e, 0x37, 0x1e, 0x33, 0x54, 0x39, 0xe6, 0xba, 0xb4, 0xa2, 0xad, 0xa4, 0xc5, 0x95, 0xc8,
0xc1, 0xe4, 0x8a, 0xec, 0xe7, 0x92, 0x8b, 0xe8, 0x81, 0xf0, 0xad, 0x98, 0xa4, 0xd0, 0xc0, 0x8d,
0xac, 0x22, 0x52, 0x65, 0x7e, 0x27, 0x2b, 0x5a, 0x12, 0x61, 0x0a, 0x01, 0x7a, 0x6b, 0x1d, 0x67,
0x75, 0x70, 0x6c, 0x1b, 0x11, 0x25, 0x25, 0x70, 0x7f, 0x7e, 0x67, 0x63, 0x30, 0x3c, 0x6d, 0x6a,
0x01, 0x51, 0x59, 0x5f, 0x56, 0x13, 0x10, 0x43, 0x19, 0x18, 0xe5, 0xe0, 0xbe, 0xbf, 0xbd, 0xe9,
0xf0, 0xf1, 0xf9, 0xfa, 0xab, 0x8f, 0xc1, 0xdf, 0xcf, 0x8d, 0xf8, 0xe7, 0xe2, 0xe9, 0x93, 0x8e,
0xec, 0xf5, 0xc8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x37, 0x7a, 0x07, 0x11, 0x1f, 0x1d, 0x68, 0x25, 0x32, 0x77, 0x1e, 0x62, 0x23, 0x5b, 0x47, 0x55,
0x53, 0x30, 0x11, 0x42, 0xf6, 0xf1, 0xb1, 0xe6, 0xc3, 0xcc, 0xf8, 0xc5, 0xe4, 0xcc, 0xc0, 0xd3,
0x85, 0xfd, 0x9a, 0xe3, 0xe6, 0x81, 0xb5, 0xbb, 0xd7, 0xcd, 0x87, 0xa3, 0xd3, 0x6b, 0x36, 0x6f,
0x6f, 0x66, 0x55, 0x30, 0x16, 0x45, 0x5e, 0x09, 0x74, 0x5c, 0x3f, 0x29, 0x2b, 0x66, 0x3d, 0x0d,
0x02, 0x30, 0x28, 0x35, 0x15, 0x09, 0x15, 0xdd, 0xec, 0xb8, 0xe2, 0xfb, 0xd8, 0xcb, 0xd8, 0xd1,
0x8b, 0xd5, 0x82, 0xd9, 0x9a, 0xf1, 0x92, 0xab, 0xe8, 0xa6, 0xd6, 0xd0, 0x8c, 0xaa, 0xd2, 0x94,
0xcf, 0x45, 0x46, 0x67, 0x20, 0x7d, 0x44, 0x14, 0x6b, 0x45, 0x6d, 0x54, 0x03, 0x17, 0x60, 0x62,
0x55, 0x5a, 0x4a, 0x66, 0x61, 0x11, 0x57, 0x68, 0x75, 0x05, 0x62, 0x36, 0x7d, 0x02, 0x10, 0x4b,
0x08, 0x22, 0x42, 0x32, 0xba, 0xe2, 0xb9, 0xe2, 0xd6, 0xb9, 0xff, 0xc3, 0xe9, 0x8a, 0x8f, 0xc1,
0x8f, 0xe1, 0xb8, 0xa4, 0x96, 0xf1, 0x8f, 0x81, 0xb1, 0x8d, 0x89, 0xcc, 0xd4, 0x78, 0x76, 0x61,
0x72, 0x3e, 0x37, 0x23, 0x56, 0x73, 0x71, 0x79, 0x63, 0x7c, 0x08, 0x11, 0x20, 0x69, 0x7a, 0x14,
0x68, 0x05, 0x21, 0x1e, 0x32, 0x27, 0x59, 0xb7, 0xcf, 0xab, 0xdd, 0xd5, 0xcc, 0x97, 0x93, 0xf2,
0xe7, 0xc0, 0xeb, 0xff, 0xe9, 0xa3, 0xbf, 0xa1, 0xab, 0x8b, 0xbb, 0x9e, 0x9e, 0x8c, 0xa0, 0xc1,
0x9b, 0x5a, 0x2f, 0x2f, 0x4e, 0x4e, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00
],
exec: function()
{
// virtual machine architecture
// ++++++++++++++++++++++++++++
//
// segmented memory model with 16-byte segment size (notation seg:offset)
//
// 4 general-purpose registers (r0-r3)
// 2 segment registers (cs, ds equiv. to r4, r5)
// 1 flags register (fl)
//
// instruction encoding
// ++++++++++++++++++++
//
// byte 1 byte 2 (optional)
// bits [ 7 6 5 4 3 2 1 0 ] [ 7 6 5 4 3 2 1 0 ]
// opcode - - -
// mod -
// operand1 - - - -
// operand2 - - - - - - - -
//
// operand1 is always a register index
// operand2 is optional, depending upon the instruction set specified below
// the value of mod alters the meaning of any operand2
// 0: operand2 = reg ix
// 1: operand2 = fixed immediate value or target segment (depending on instruction)
//
// instruction set
// +++++++++++++++
//
// Notes:
// * r1, r2 => operand 1 is register 1, operand 2 is register 2
// * movr r1, r2 => move contents of register r2 into register r1
//
// opcode | instruction | operands (mod 0) | operands (mod 1)
// -------+-------------+------------------+-----------------
// 0x00 | jmp | r1 | r2:r1
// 0x01 | movr | r1, r2 | rx, imm
// 0x02 | movm | r1, [ds:r2] | [ds:r1], r2
// 0x03 | add | r1, r2 | r1, imm
// 0x04 | xor | r1, r2 | r1, imm
// 0x05 | cmp | r1, r2 | r1, imm
// 0x06 | jmpe | r1 | r2:r1
// 0x07 | hlt | N/A | N/A
//
// flags
// +++++
//
// cmp r1, r2 instruction results in:
// r1 == r2 => fl = 0
// r1 < r2 => fl = 0xff
// r1 > r2 => fl = 1
//
// jmpe r1
// => if (fl == 0) jmp r1
// else nop
//throw "VM.exec not yet implemented";
var halt = false;
var bsz = 1;
var debug = function(msg) {
var log = function(object, context, className, rep, noThrottle, sourceLink) {
try {
if ('undefined' != typeof Firebug && 'undefined' != typeof Firebug.Console) {
Firebug.Console.log(object, context, className, rep, noThrottle, sourceLink);
} else if ('undefined' != typeof console && 'undefined' != typeof console.log) {
console.log(object);
}
} catch (e) {
}
};
log(VM.cpu.cs+':'+VM.cpu.ip+' '+msg);
};
var ops = 0;
debug('Start!');
while(!halt) {
ops++;
var pcp = (VM.cpu.cs*16)+VM.cpu.ip;
var inst = VM.mem[pcp];
var opcode = (inst>>5) & 7;
var mod = (inst >> 4) & 1;
var op1 = 15 & inst;
var op2 = VM.mem[pcp+1];
var setIx = function(op1,val) {
if (op1 == 0) {
VM.cpu.r0 = val;
} else if (op1 == 1) {
VM.cpu.r1 = val;
} else if (op1 == 2) {
VM.cpu.r2 = val;
} else if (op1 == 3) {
VM.cpu.r3 = val;
} else if (op1 == 4) {
VM.cpu.cs = val;
} else if (op1 == 5) {
VM.cpu.ds = val;
} else {
halt = true;
debug("Invalid setIx "+opcode+':'+mod+':'+op1+':'+op2);
throw 'Invalid operation!';
}
};
var getIx = function(op1) {
if (op1 == 0) {
return VM.cpu.r0;
} else if (op1 == 1) {
return VM.cpu.r1;
} else if (op1 == 2) {
return VM.cpu.r2;
} else if (op1 == 3) {
return VM.cpu.r3;
} else if (op1 == 4) {
return VM.cpu.cs;
} else if (op1 == 5) {
return VM.cpu.ds;
} else {
debug("Invalid getIx "+opcode+':'+mod+':'+op1+':'+op2);
throw "Invalid Operation!";
halt = true;
}
};
//alert(inst+':'+opcode+':'+mod+':'+op1);
switch(opcode) {
case 0: // jmp
if (mod) {
var v1 = op2;//getIx(op2);
var v2 = op1;//getIx(op1);
debug('jmp '+op2+':'+op1+' #'+v1+':'+v2);
VM.cpu.cs = v1;
VM.cpu.ip = v2;
} else {
var val = getIx(op1);
debug('jmp r'+op1+' #'+val);
VM.cpu.ip = val;
}
break;
case 1: // movr
if (mod) { // rx, imm
setIx(op1,op2);
debug('movr r'+op1+', '+op2);
} else { //r1, r2
var val = getIx(op2);
setIx(op1,val);
debug('movr r'+op1+', r'+op2+' #'+val);
}
VM.cpu.ip += 2;
break;
case 2: // movm
if (mod) { // [ds:r1], r2
VM.mem[(VM.cpu.ds * 16)+getIx(op1)] = getIx(op2);
debug('movm [ds:r'+op1+'], r'+op2);
} else { //r1, [ds:r2]
var val = VM.mem[(VM.cpu.ds * 16)+getIx(op2)];
setIx(op1,val);
debug('movm r'+op1+', [ds:r'+op2+'] #'+val);
}
VM.cpu.ip += 2;
break;
case 3: // add
var op2 = VM.mem[pcp+1];
if (mod) { // r1, imm
var val = (getIx(op1)+op2) & 255;
setIx(op1,val);
debug('add r'+op1+', '+op2+' # '+val);
} else { // r1, r2
var val = (getIx(op1)+getIx(op2)) & 255;
setIx(op1,val);
debug('add r'+op1+', r'+op2+' #' + val);
}
VM.cpu.ip += 2;
break;
case 4: //xor
if (mod) { // r1, imm
var val = getIx(op1) ^ op2;
setIx(op1,val);
debug('xor r'+op1+', '+op2+' # '+val);
} else { // r1, r2
var val = getIx(op1) ^ getIx(op2);
setIx(op1,val);
debug('xor r'+op1+', r'+op2+' # '+val);
}
VM.cpu.ip += 2;
break;
case 5: //cmp
if (mod) { //r1, imm
if (getIx(op1) == op2) {
VM.cpu.fl = 0;
} else if (getIx(op1) < op2) {
VM.cpu.fl = 0xff;
} else {
VM.cpu.fl = 1;
}
debug('cmp r'+op1+', '+op2);
} else { //r1, r2
if (getIx(op1) == getIx(op2)) {
VM.cpu.fl = 0;
} else if (getIx(op1) < getIx(op2)) {
VM.cpu.fl = 0xff;
} else {
VM.cpu.fl = 1;
}
debug("cmp r'+op1+', r'+op2+'");
}
VM.cpu.ip += 2;
break;
case 6: //jmpe | r1 | r2:r1
if (VM.cpu.fl == 0) {
if (mod) {
var op2 = VM.mem[pcp+1];
var val2 = getIx(op2);
var val2 = getIx(op1);
debug('jmpe r'+op2+':r'+op1+' # '+val1+':'+val2);
VM.cpu.cs = val1;
VM.cpu.ip = val2;
} else {
var val = getIx(op1);
debug('jmpe r'+op1+' # '+val);
VM.cpu.ip = val;
}
} else {
debug('jmpe # noop');
if (mod) {
VM.cpu.ip += 2;
} else {
VM.cpu.ip += 1;
}
}
break;
case 7:
alert("halt");
halt = true;
break;
}
}
return;
}
};
//--------------------------------------------------------------------------------------------------
try
{
VM.exec();
}
catch(e)
{
alert('nError: ' + e + 'n');
}
//--------------------------------------------------------------------------------------------------Sweet! It worked. So I download the .exe file produced by the virtual machine.
Challenge #3
Well, this is annoying. Their exe file requires cygwin. I haven’t used cygwin in years, and I really don’t want to download it. Hmm… I guess I’ll just google it. So I googled the exe filename and found a lot of forum posts about this file. Well, I’m not going to trust these people; I don’t know who they are, I guess I’ll just install cygwin. So I did and ran the program, and what do you know, another error. Invalid license. Hmm. So I need to crack a software license? What type of legal government hacking would ever involve cracking software licenses??? What a mess. So I tried to download the license file from the can you crack it site, but no luck. They really want you to crack the license. So I did some more googling and I found that someone has already cracked the license and published the results online. Well, there’s no point in wasting my time cracking a license when its already been done. I went to the site posted in the forums and its just a link to a page advertising a job posting. Bah! It was just viral marketing trying to fill a job position, no calls from secret government agencies or anything, just a job posting that you could probably find without going through all this hassle. What a waste…
Oh well, at least I cracked one of the challenges without any help, not bad for a lazy hacker.
